Description

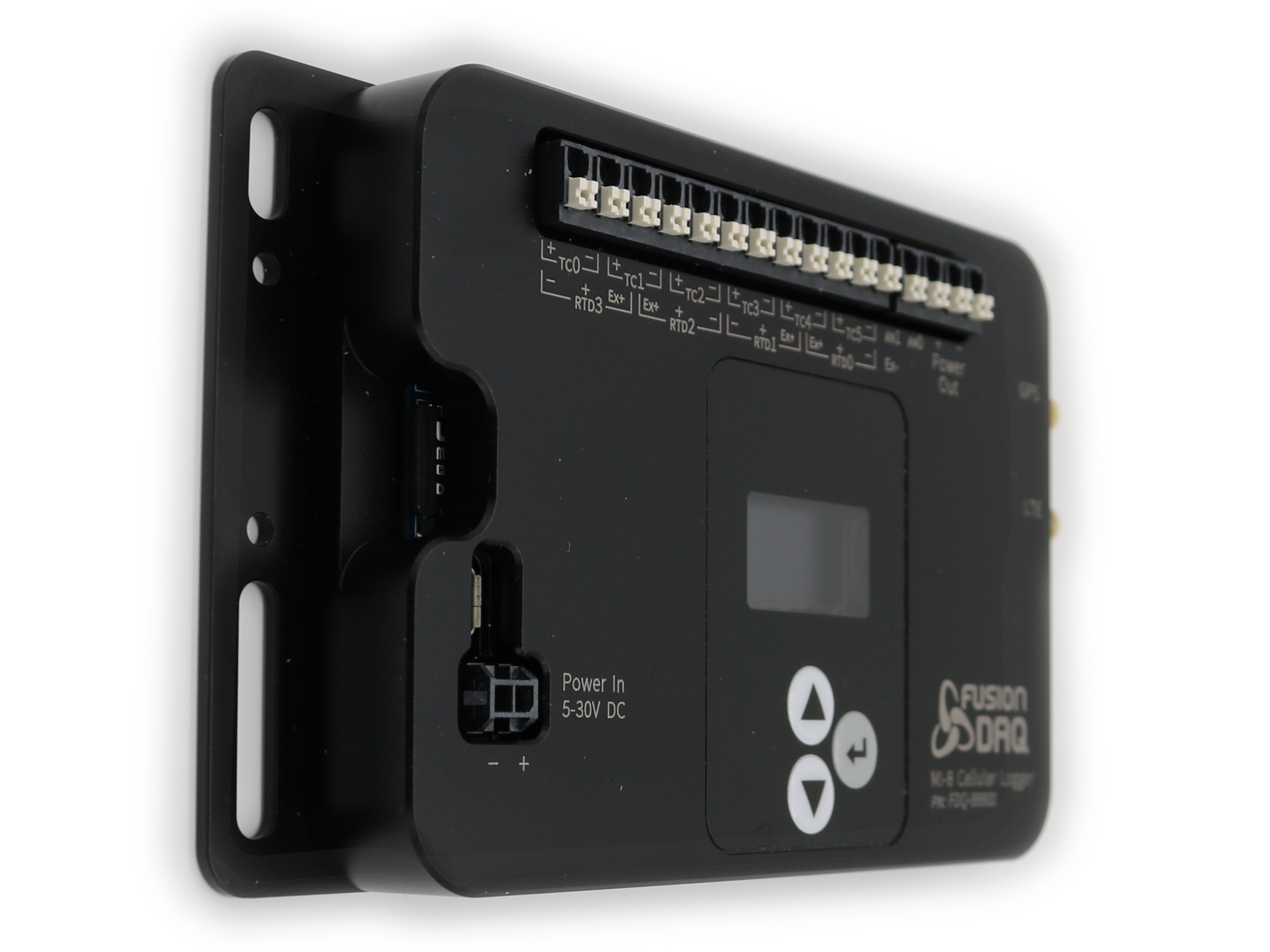

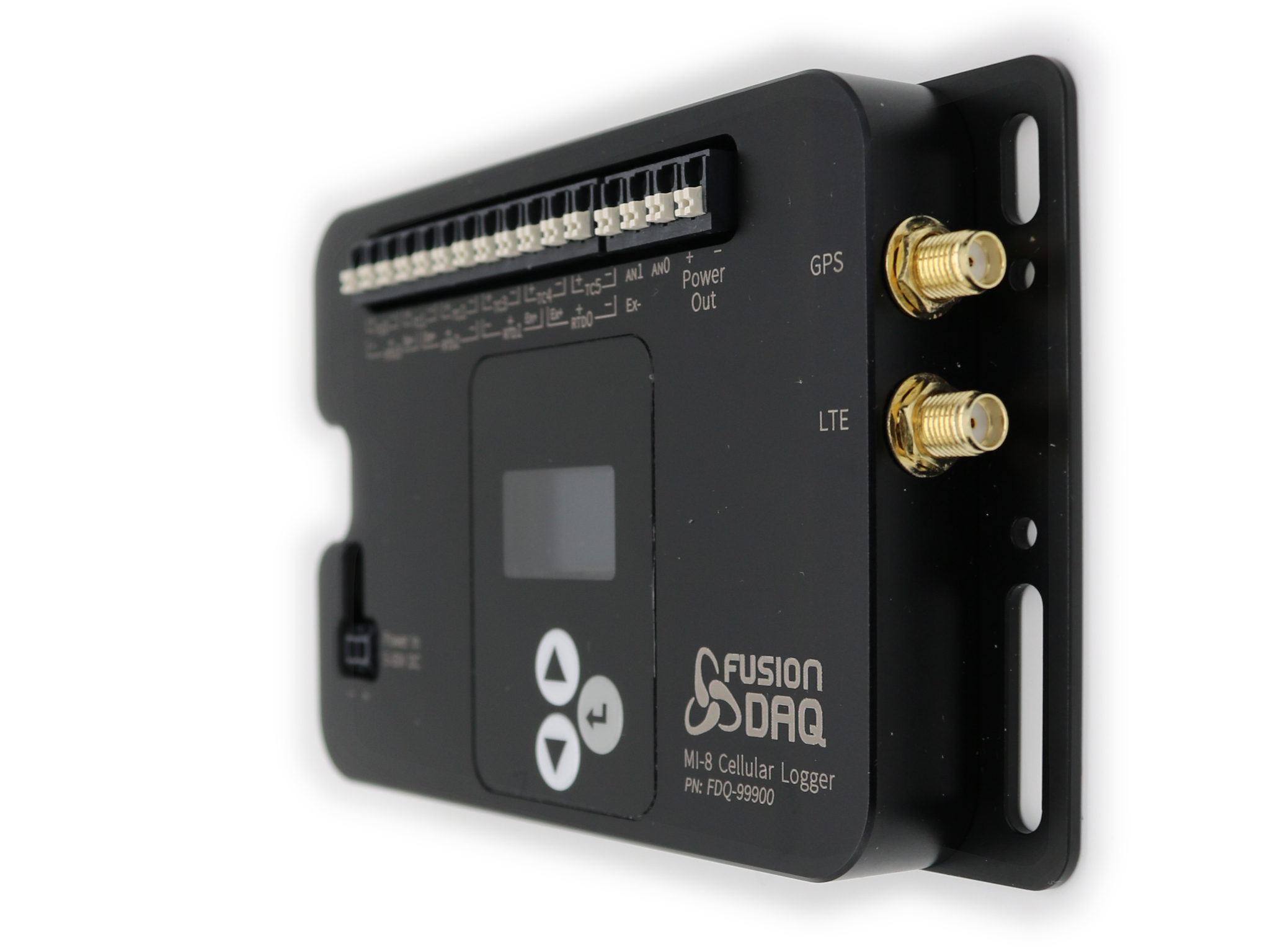

The FDQ-99900 MI-8 is a compact, 24-bit data acquisition system (DAQ) designed to measure up to ten external sensors then log values locally to an SD card or push data to the cloud over a cellular data connection. Advanced triggering functionality allows the MI-8 to conserve storage space and network data by only transmitting events of interest. The low power consumption and wide operating temperature range are designed to allow outdoor and remote installations. The MI-8 is available with and without an enclosure to support custom packaging solutions. For example, the enclosureless (OEM) configuration is often mounted into an IP-67 rated NEMA enclosure along with supporting sensors and hardware.
Applications
- Remote battery/solar-powered installations
- Automotive data acquisition (EGT, etc.)
- Electrical contact resistance measurement
- Remote strain-gauge/load-cell monitoring
- Industrial and Chemical process measurement
- Research instrumentation
Features
- Push data to remote server or log directly to SD Card
- LTE CAT-M1 and CAT-NB cellular bands
- Advanced triggering options
- HTTP/MQTT push APIs
- Up to two general purpose 0-10V analog inputs
- Up to four RTD or strain gauge measurements
- Up to six thermocouple inputs
- Negative common-mode range handling for grounded thermocouples (±2.4V)
- Supports all major thermocouple types (B, E, J, K, N, R, S, T)
- Regulated 14.4V output to power external sensors.
- Wide supply voltage range (4.8-30V)
- deal for battery powered installations
- Integrated GPS (GNSS) Receiver
