Description

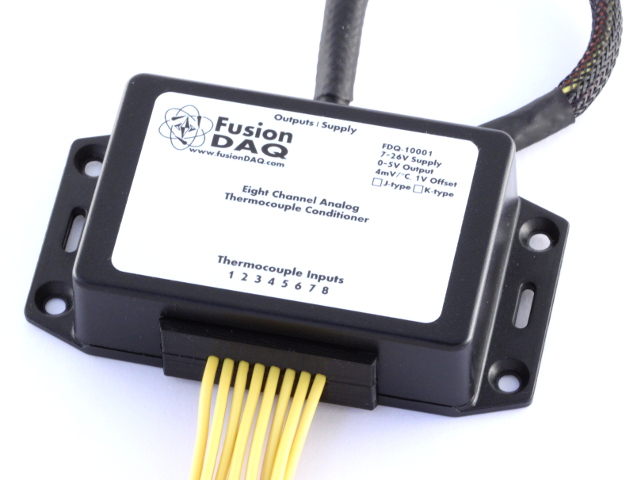

Integrated thermocouple amplifier/conditioner with 8 dedicated channels, grounded thermocouple handling, and a full enclosure. Thermocouple inputs are converted into a 0-5V, highly-linear 4mV/°C output signal representing a -250°C – 1000°C temperature range. This unit can be supplied with the full automotive supply range and beyond, with a 7-26V continuous supply range. Input and output harnesses maintain thermocouple signal integrity while protecting against vibration. Finally, the electronics are specially treated to protect against humid environments.
Applications
- Automotive Data Acquisition (exhaust, coolant, cylinder head, brakes, etc)
- Industrial instrumentation (process control, coolants, fluids, bearings)
- Brewing applications
- Oven temperature monitoring
Features
- Grounded thermocouples are handled, with a common-mode voltage range from -1.5V – 6V

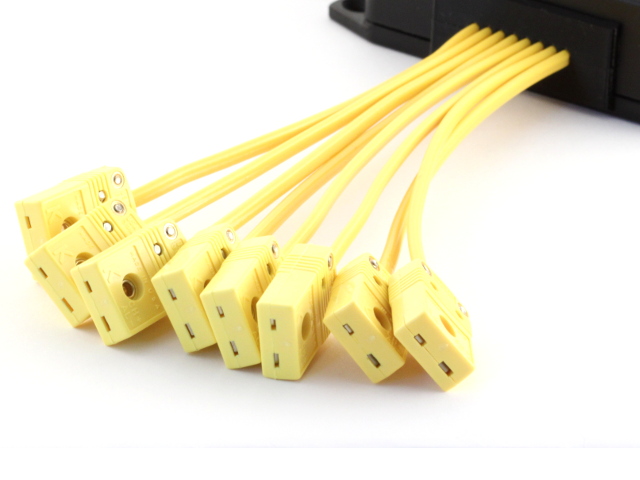

- Mini-style TC inputs standard, contact us for large or other connector needs
- Measures -250°C-1000°C (extended range)
- Ttc = ((Vout – 1) / 0.004)°C
- Analog output with high cutoff frequency
- Measure rapid changes in temperature, such as exhaust temp during a drag race, that mansensors can’t detect
- Perfect for EGT, CHT, fluid temps, brewing, and many other industrial temperature sensing applications
- Supply voltage range: 7 – 26V with full reverse polarity protection
- ± 2°C linearity from -20 – 400°C ( -4 – 752°F)
- ± 16°C linearity from -100 – 1300°C (-148 – 2372°F) without correction
- Correction tables are available, full range accuracy to ± 1°C
- Open thermocouple detect, channel voltage pulls to 5V
- Designed, manufactured, tested and shipped from the USA
